Thermoplastic Polyurethane (TPU) is a versatile material that has found substantial application in 3D Printing due to its unique properties. TPU is a type of elastomer, a polymer material exhibiting viscosity and elasticity. Notable for its flexibility and durability, TPU is extensively used in various industries, from automotive to fashion. In 3D Printing, TPU has carved a significant niche, offering the possibility of creating complex, custom, and robust designs. This document explores the application, advantages, and considerations of using TPU rubber in 3D Printing, providing comprehensive insights into this exceptional material.
What is TPU?
Thermoplastic Polyurethane (TPU) is a type of thermoplastic elastomer, a polymer that exhibits extraordinary flexibility and resilience. This material is essentially a block copolymer comprising hard and soft segments. The complex components provide strength and thermal resistance, while the delicate parts offer flexibility and impact resistance. TPU’s robust yet flexible characteristics and ability to withstand a wide range of temperatures make this polymer a widely sought-after material across multiple industries. One notable feature of TPU is its capability to be extruded and shaped in a 3D printer, opening up a world of design possibilities.
Overview of 3D Printing
3D Printing, also known as additive manufacturing, is a transformative process that involves creating a physical object from a digital design by depositing material layer by layer. This technology has revolutionized several industries by allowing rapid prototyping, complex geometric design, and customization. 3D printers use various materials, ranging from plastics to metals to ceramics, and each material offers unique properties that meet different application requirements. TPU, with its inherent flexibility and resilience, has emerged as a preferred choice for 3D printing applications that demand durability and elasticity. In the subsequent sections, we will explore how TPU leverages the capabilities of 3D printing technology and the benefits it brings to various industries.
Importance of Thermoplastic Polyurethane in 3D Printing
The significance of Thermoplastic Polyurethane (TPU) in 3D Printing cannot be overstated. TPU’s strength and elasticity make it an ideal material for 3D-printed objects that must withstand wear and tear or maintain flexibility. For instance, consumer products such as smartphone cases, footwear, and medical devices benefit significantly from TPU’s durability and elasticity. Furthermore, TPU’s compatibility with 3D printing technology allows for high-precision custom designs, enabling manufacturerss to deliver tailored solutions on apreviously unattainable scalee. From rapid prototyping to low-volume production, TPU’s unique properties, combined with the advantages of 3D Printing, are driving innovation across industries.
TPU Material Properties
Elasticity and Flexibility of TPU in 3D Printing
Thermoplastic Polyurethane (TPU) is renowned for its exceptional elasticity and flexibility, significantly contributing to its growing popularity in 3D Printing. These properties allow TPU to be deformed and stretched considerably returning to their original shape without causing structural damage. This behavior is particularly beneficial when manufacturing objects that need to sustain repeated flexing or bending, like protective smartphone cases or wearable devices. Moreover, the flexibility of TPU permits the creation of intricate designs with ease, making this material a preferred choice for applications that require both resilience and precision. As 3D Printing continues to evolve, the elasticity and flexibility of TPU will undoubtedly remain critical factors in material selection.
Chemical Resistance of TPU in 3D Printing
Another vital property that underscores the versatility of Thermoplastic Polyurethane (TPU) in 3D Printing is its excellent chemical resistance. TPU is resistant to oil, grease, and a variety of solvents. This makes it a good material choice for industrial applications where parts may be exposed to harsh chemicals or for consumer goods that often encounter substances like oils and cosmetic creams. The chemical resistance of TPU also extends to its robustness against weather-induced degradation, including resistance to UV radiation and ozone, thereby enhancing the longevity of 3D printed components. Therefore, when durability in diverse environmental conditions is a requirement, the chemical resistance of TPU provides a significant advantage.
Impact Resistance of TPU in 3D Printing
One significant advantage that sets Thermoplastic Polyurethane (TPU) apart in 3D printing is its outstanding impact resistance. TPU can withstand substantial physical stress without cracking or breaking, unlike other materials. This trait is particularly beneficial for engineering applications that demand high-performance parts, such as protective gear, automotive parts, or even smartphone cases. These items often face a high degree of impact in daily use, so a material that can resist these forces while maintaining its form and function is crucial. TPU’s impact resistance, flexibility, and chemical resistance ensure its position as a go-to material for creating durable, long-lasting 3D-printed products.
Temperature Resistance of TPU in 3D Printing
Another noteworthy characteristic of Thermoplastic Polyurethane (TPU) in 3D Printing is its exceptional temperature resistance. TPU can endure a wide range of temperatures without losing its integral properties or experiencing thermal degradation. This makes it highly suitable for applications exposed to extreme temperature conditions, whether hot or cold. From components in automobiles that have to withstand engine heat to equipment designed for cold weather or refrigerated environments, TPU’s capability to perform reliably across different temperatures makes it an incredibly versatile material in 3D Printing. Hence, for projects that require thermal stability, TPU’s temperature resistance is yet another reason why it is often the material of choice.
Advantages of TPU in 3D Printing
Ability to Create Flexible and Durable Objects
TPU’s inherent flexibility and durability make it an ideal material for 3D Printing. It allows creators to produce objects that can bend or twist without compromising their structural integrity. This makes TPU an excellent choice for printing items that must be resilient and flexible, such as gears, seals, gaskets, and protective covers.
Versatility in Final Object Applications
The versatility of TPU in final application use is another significant advantage. Its unique properties allow it to be utilized in various sectors, ranging from automotive and aerospace to consumer goods and medical devices. This wide range of applicability means that whether you’re crafting highly specialized parts for a complex machine or simply printing a custom phone case, TPU’s versatility makes it a prime candidate for many 3D printing projects.
Improved Precision and Detail
Lastly, TPU offers improved precision and detail in 3D Printing. Its ability to hold fine details makes it an excellent choice for intricate designs or complex geometric structures. Furthermore, TPU’s smooth surface finish post-printing adds to the final product’s aesthetic appeal, making it functional and visually impressive.

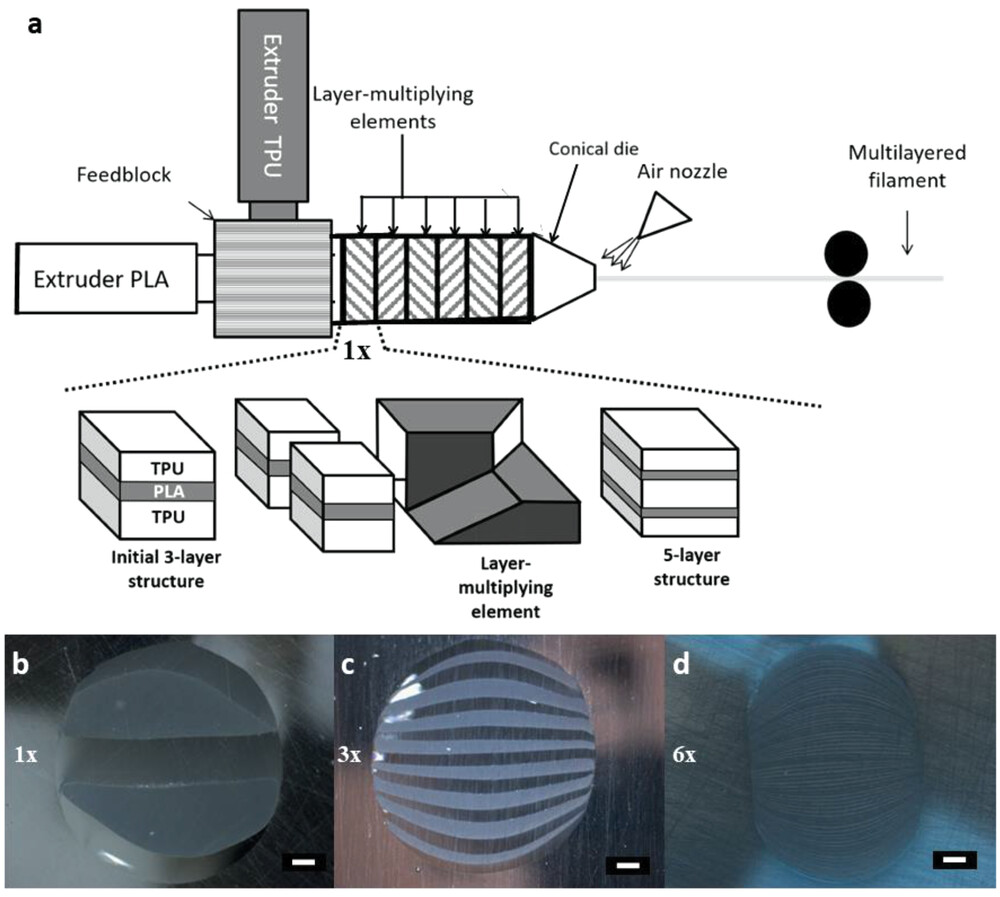

Processing Methods for TPU in 3D Printing
Fused Deposition Modeling (FDM)
Fused Deposition Modeling (FDM) is a standard method for processing TPU in 3D Printing. In this technique, the TPU filament is heated until it melts and is then extruded layer by layer to create the 3D object. The cooling and solidification of the TPU provide the final shape.
Stereolithography (SLA)
Stereolithography (SLA) is another method used to process TPU. In this process, a vat of liquid TPU resin is exposed to a light source, usually a laser. The light hardens the resin layer by layer, creating a solid 3D object. Although not as commonly used as FDM for TPU, SLA can produce parts with a high level of detail and smooth surface finish.

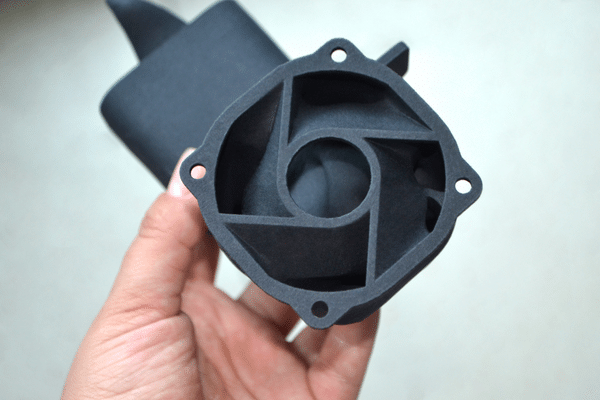

Selective Laser Sintering (SLS)
Selective Laser Sintering (SLS) is a third technique for processing TPU in 3D Printing. In SLS, a high-power laser fuses small particles of TPU powder, layer by layer, to create the 3D object. SLS can produce highly complex geometries and is known for its strength and durability, making it a suitable method for printing robust, functional parts with TPU.
Applications of TPU 3D Printing
Footwear and Wearable Technology
TPU is increasingly being used in designing and manufacturing footwear and wearable technology. Its flexibility and durability make it an excellent material choice for shoes and other wearables. TPU’s resilience allows for the creation of comfortable, custom-fit shoes, and its resistance to wear and tear enhances the lifespan of these products.
Prototyping and Product Development
In the realm of prototyping and product development, TPU 3D printing is a game-changer. The ability to quickly and accurately create prototypes allows for rapid testing and refinement of product designs. With TPU’s versatility, companies can reproduce the feel and functionality of the final product, aiding in the development process and reducing time to market.
Medical Devices and Prosthetics
The medical field is another area where TPU 3D printing finds extensive application. It’s used to create medical devices such as respiratory masks and surgical tools. TPU’s biocompatibility and flexibility make it an ideal prosthetic choice, offering wearers a more comfortable and personalized fit. The ability to print customized prosthetics at a lower cost has significant implications for improving the quality of life for amputees.
Future Developments and Research
Enhancing Material Properties of TPU
In the future, research will continue to focus on enhancing the material properties of TPU to unlock its full potential. Scientists aim to improve its heat resistance, chemical resistance, and tensile strength. Enhanced TPU could open up new possibilities for its use in a broader range of applications, such as in the automotive or aerospace industries, requiring high-performance materials.
Improving 3D Printing Techniques for TPU
Researchers are constantly striving to refine the 3D printing techniques used for TPU. One area of development is the reduction of printing time without compromising the quality of the output. Another is the optimization of the printing process, such as improving the precision of layering to allow for the creation of more complex and detailed designs.
Exploring New Applications and Industries
As the properties and 3D printing techniques of TPU continue to evolve, new applications and industries will emerge. TPU has the potential to revolutionize sectors like fashion, where its flexibility could be used to create innovative, customizable, and sustainable products. In the construction industry, TPU could print large-scale, durable components for buildings. Exploring other possible applications will be at the forefront of future research and development initiatives.
Frequently Asked Questions (FAQs)
Q: What is TPU rubber, and how is it used in 3D Printing?
A: TPU rubber, also known as thermoplastic polyurethane, is a rubber-like, flexible material that can be used in 3D Printing. It is an elastomer that combines the properties of rubber and plastic, making it ideal for applications that require both flexibility and durability.
Q: What are the properties of TPU rubber?
A: TPU rubber has excellent abrasion resistance, high elongation, and flexibility. It is also known for its high elasticity and rubber-like feel, making it ideal for manufacturing flexible parts.
Q: Can TPU rubber be used in injection molding?
A: Yes, TPU rubber can be used in injection molding. It can be melted and then injected into a mold, allowing for the production of complex and precise parts.
Q: How does the polyaddition reaction occur in TPU rubber production?
A: The polyaddition reaction occurs between a diisocyanate and one or more diols in the production of TPU rubber. This reaction leads to the formation of a thermoplastic elastomer with unique properties.
Q: What are some available TPUs for 3D Printing?
A: There are various types of TPUs available for 3D Printing, including TPU 95A, aliphatic TPU, and polycaprolactone-based TPUs. Each type has its own set of properties and applications.
Q: What are the advantages of using TPU rubber in 3D Printing?
A: TPU rubber offers several advantages in 3D Printing. It allows for the production of flexible parts with high durability. Additionally, TPU is a thermoplastic material, which means it can be melted and reshaped multiple times without losing its properties.
Q: Can TPU rubber be used as a soft engineering plastic?
A: TPU rubber can be used as a soft engineering plastic. Its flexibility, abrasion resistance, and low-temperature performance make it suitable for various engineering applications.
Q: What is the difference between TPU rubber and TPE?
A: TPU rubber and TPE (thermoplastic elastomer) are both flexible materials used in 3D Printing. The main difference lies in their chemical composition and properties. TPU rubber is a specific type of TPE that offers excellent abrasion resistance and elasticity.
Q: Can TPU be used to 3D print flexible parts?
A: TPU is a popular choice for 3D printing flexible parts. Its rubber-like material appearance and high flexibility make it suitable for applications such as prototyping, footwear, and wearable technology.
Q: What is the hardness of TPU rubber?
A: The hardness of TPU rubber can vary depending on the specific formulation. TPU 95A, for example, has a hardness level of 95 on the Shore A scale.
